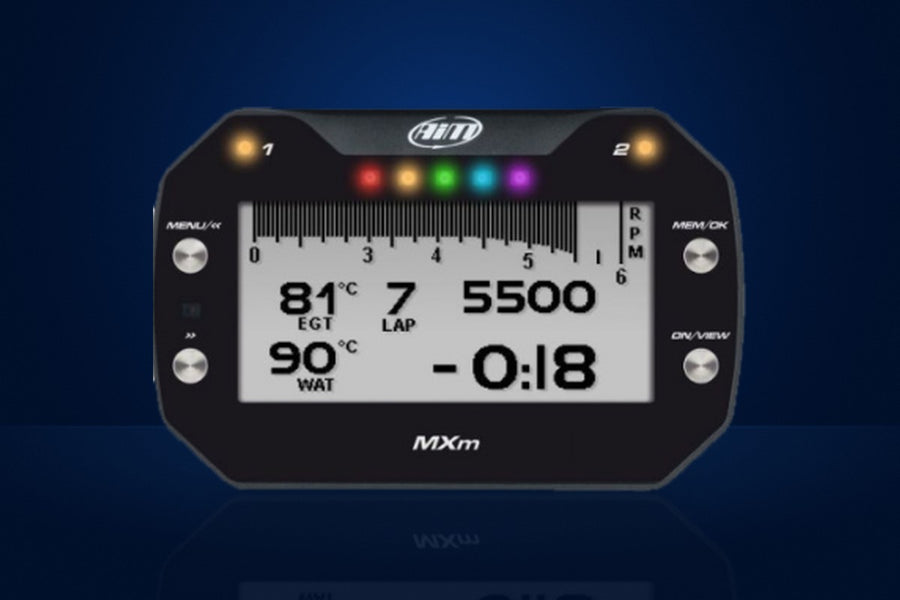

AiM MXm Dash Logger

Compact LCD dash logger from the AiM MX LCD series, with 4 analog inputs, 3 digital inputs and 2 high-side outputs on top of ECU and GPS data.

• High contrast LCD 268 x 128 pixels, 7 configurable RGB backlight colours, ambient light sensor
• 2 RGB alarm LEDs and 5 RGB shift light LEDs
• 2 CAN connections, connection to 1,000+ ECUs
• 4 configurable analog inputs, 3 digital inputs, 2 digital high-side outputs
• Integrated GPS, 4 GB internal memory, IP65
• In the kit: MXm, 37-pin connector harness + USB cable, Amphenol cable, DTP 06-4S EE01 4-pin connector with pins
